Ultracharge 160

Intelligent ultra-rapid EV charging station

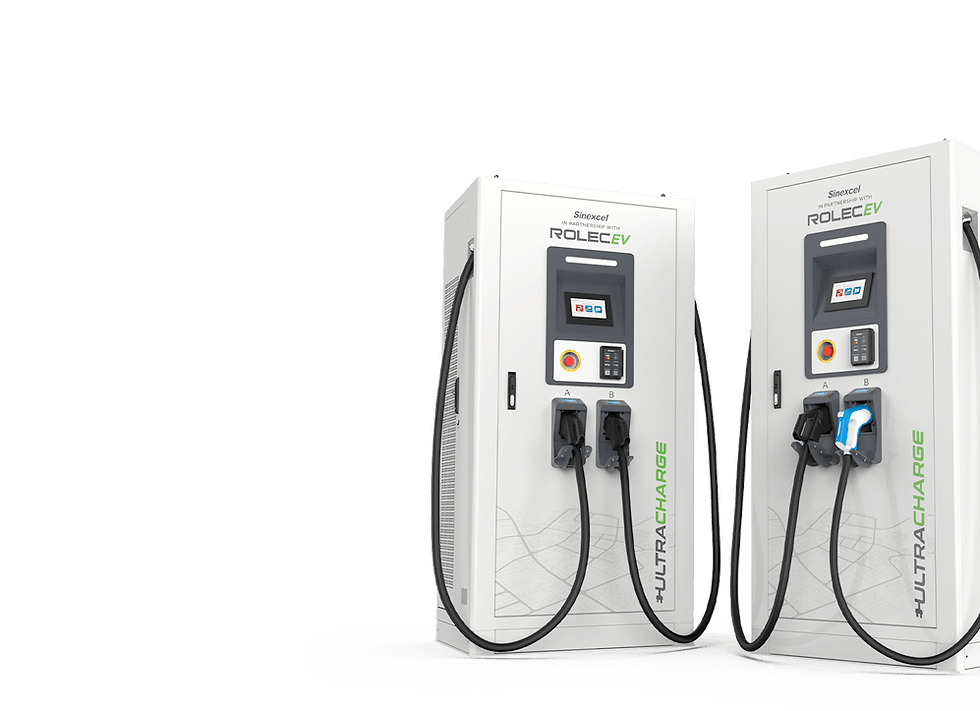

Large image of the Ultracharge 160
Products / Ultracharge 160

About the Rolec Ultracharge 160

Our latest DC ultra-rapid charging station, ULTRACHARGE 160, is an intelligent modular and scalable charger that can be upgraded in modules of 20kW, up to 160kW. A cost-effective solution for public, fleet and highway infrastructure deployment.With four standard power configurations; 60kW, 80kW, 120kW or 160kW, its dynamic power balancing feature enables two vehicles to charge simultaneously. It can be activated via mobile app, RFID, Apple Pay, Google Pay or contactless payment. Conforms to the ISO 15118 Plug & Charge standard.

Designed forCar ParksPetrol StationsWorkplacesPublic Locations


  • Plug & charge, app, RFID or contactless payment controlled charging
  • Offer up to 2x DC charging outputs
  • Up to 160kW charging speeds (CHAdeMO up to 62.5kW | CCS2 up to 160kW)
  • Upgradeable power modules
  • OCPP 1.6 compliant (can integrate with any back-office)
  • Over-the-air firmware/software updates
  • Intelligent dynamic power-sharing
  • Supports static load management
  • 7” HD user interface touchscreen
  • Integrated RFID / NFC / contactless card payment terminal
  • 4G / Ethernet connectivity
  • 96% Peak efficiency
  • Ultrawide constant power output voltage range 300V – 1000V
  • Under/overvoltage, DC overcurrent, over-temp & surge protection
  • Long-reach 5m charging cables (4.5m external)
  • Emergency stop
  • IP55, IK10 protection rating
  • Easy to install, maintain and service
  • Stocked in the UK by Rolec EV


  • Materials: All-weather powder-coated stainless steel enclosure
  • Dimensions: 1000mm (W), 2000mm (H), 700mm (D)
  • Charge Protocol: 513kg at 160kW
  • Input Voltage: EN 61851, IEC 62196, DIN 70121, ISO 15118 Plug & Charge
  • Protection: Undervoltage & overvoltage protection, DC overcurrent protection, Over temperature protection, Surge protection device, Emergency stop button, Advanced dynamic power balancing.Optional tilt, flood and smoke detection.
